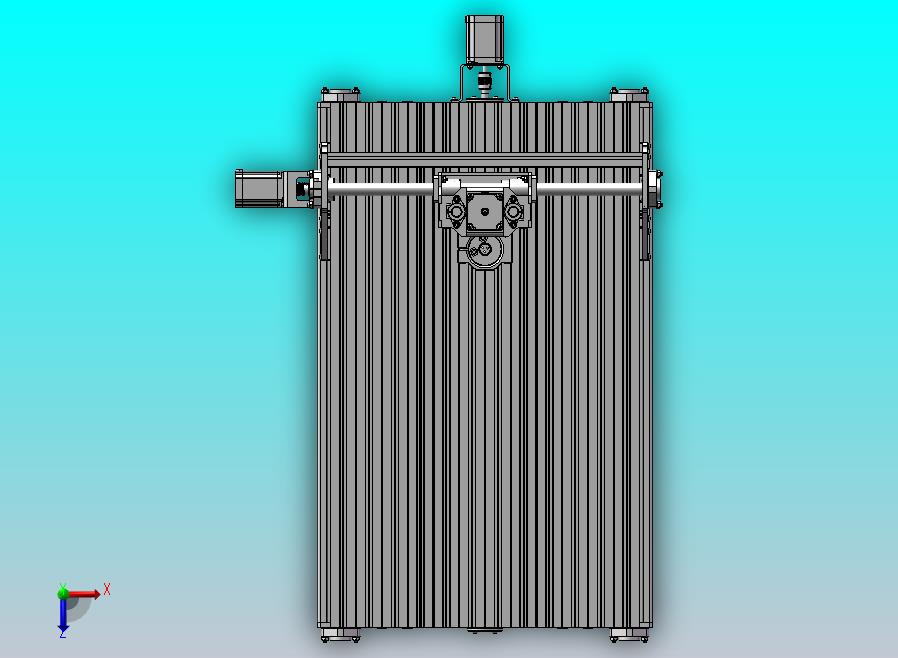

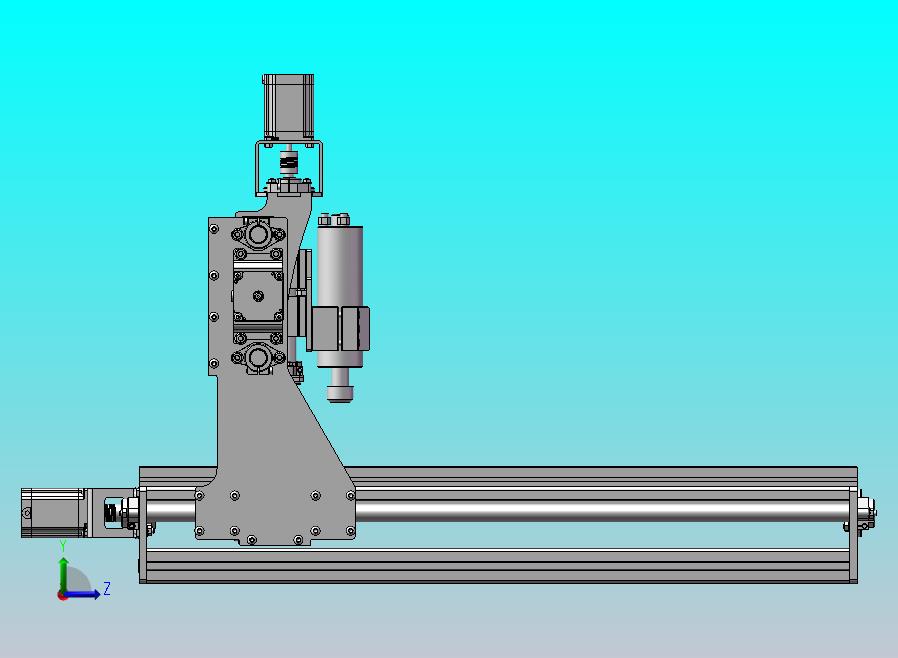

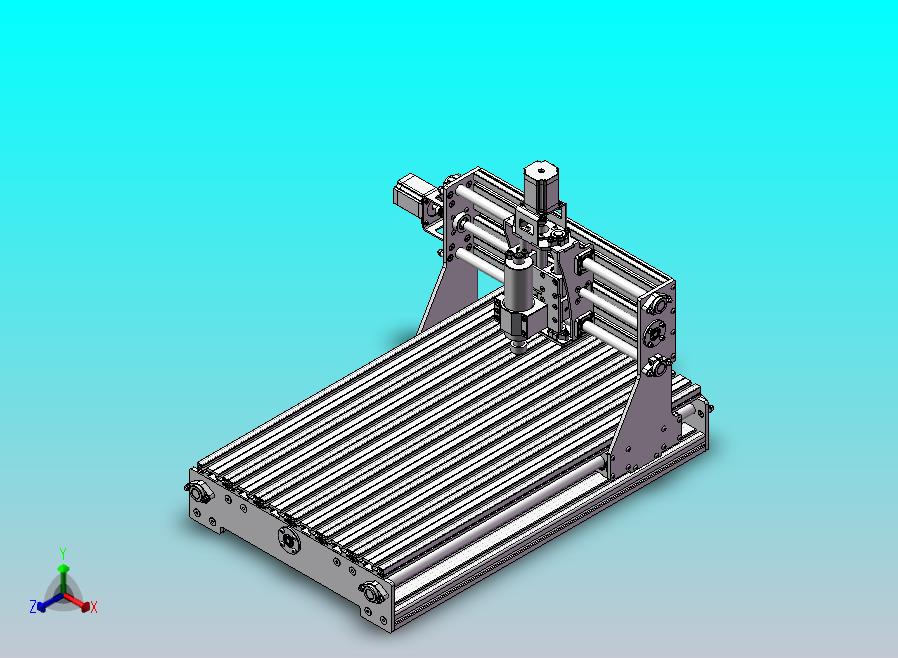

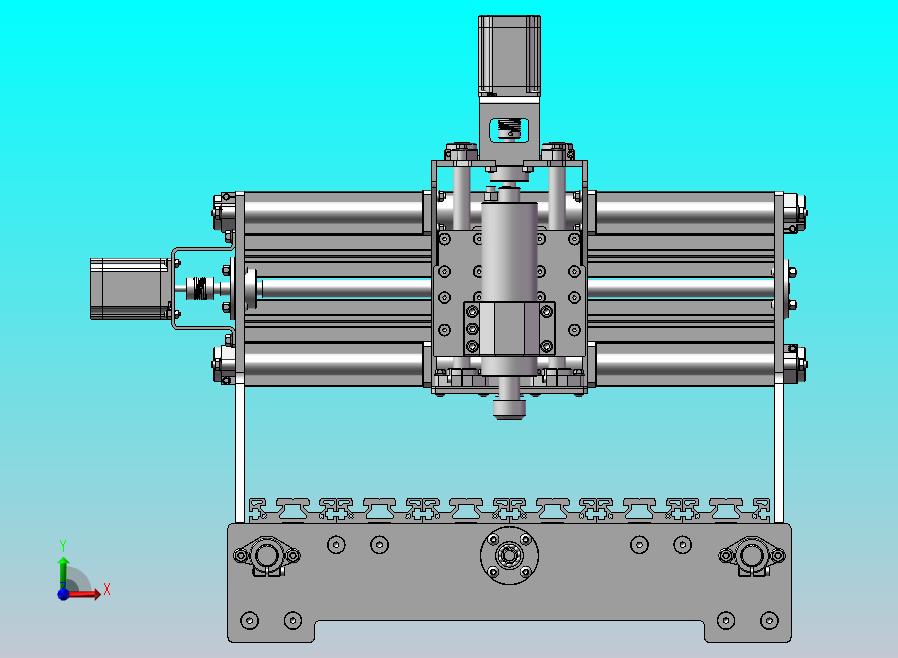

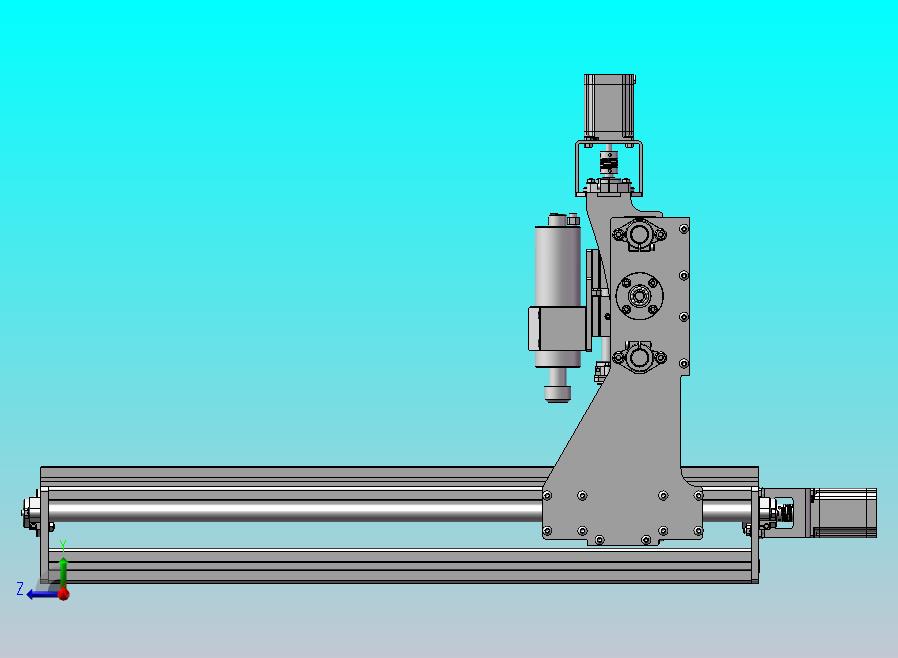

cnc-雕刻机（ID:731404）
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | CNC-1.0 000.001 羊铋赅.sldprt | 68.5 KB |
| 2 | CNC-1.0 000.001 羊铋赅_嫢_.sldprt | 70 KB |
| 3 | CNC-1.0 000.004 脏襦_.sldprt | 63 KB |
| 4 | CNC-1.0 000.004 脏襦鋉2.sldprt | 64 KB |
| 5 | CNC-1.1 0..sldprt | 64.5 KB |
| 6 | CNC-1.1 0.1 殃钺_.sldprt | 66 KB |
| 7 | CNC-2.1.SLDASM | 11.6 MB |
| 8 | Rd-1.0 0.01 噪囗弼 26.sldprt | 45 KB |
| 9 | Rd-1.0 0.02 署铐彘_.sldprt | 58.5 KB |
| 10 | Rd-1.0 0.03 噪囗弼 28.sldprt | 45 KB |
| 11 | Rd-1.0 3.03 令觐忤磬.sldprt | 60 KB |
| 12 | Rd-1.0 3.03 令觐忤磬_嫢_.sldprt | 59 KB |
| 13 | Rd-1.0 3.05 翌疱_.sldprt | 56 KB |
| 14 | Rd-1.0 3.06 想囫蜩磬.sldprt | 69.5 KB |
| 15 | Rd-1.0 3.07 务_Z.sldprt | 43 KB |
| 16 | Rd-1.0 3.09 青漤 耱屙赅.sldprt | 72 KB |
| 17 | Rd-1.0 3.10 想囫蜩磬.sldprt | 48 KB |
| 18 | Rd-1.0 3.11 想囫蜩磬.sldprt | 59.5 KB |
| 19 | Rd-1.0 3.12 想囫蜩磬.sldprt | 49.5 KB |
| 20 | Spindle bracket ER11.sldprt | 66 KB |
| 21 | Stepper motor NEMA 23HS7430.sldprt | 454 KB |
| 22 | _3_彯 悻鐮_.sldprt | 49.5 KB |
| 23 | circlip for shafts normal_din_Circlip DIN 471 - 10 x 1.sldprt | 48 KB |
| 24 | circlip for shafts normal_din_Circlip DIN 471 - 9 x 1.sldprt | 51.5 KB |
| 25 | hex flange nut gradea_iso_Hexagon Flange Nut ISO - 4161 - M5 - N.sldprt | 63.5 KB |
| 26 | hex flange nut gradea_iso_Hexagon Flange Nut ISO - 4161 - M6 - N.sldprt | 63.5 KB |
| 27 | hex nut gradec_din_Hexagon Nut ISO 4034 - M5 - N.sldprt | 51.5 KB |
| 28 | hex nut style 1 gradeab_iso_Hexagon Nut ISO - 4032 - M4 - D - C.sldprt | 52 KB |
| 29 | hex nut style 1 gradeab_iso_Hexagon Nut ISO - 4032 - M5 - D - N.sldprt | 52 KB |
| 30 | hex nut style 1 gradeab_iso_Hexagon Nut ISO - 4032 - M5 - W - N.sldprt | 51 KB |
| 31 | hex nut style 1 gradeab_iso_Hexagon Nut ISO - 4032 - M6 - W - N.sldprt | 51 KB |
| 32 | hex nut style 2 gradeab_iso_Hexagon Nut ISO - 4033 - M5 - D - N.sldprt | 51.5 KB |
| 33 | hex nut style 2 gradeab_iso_Hexagon Nut ISO - 4033 - M6 - D - N.sldprt | 51.5 KB |
| 34 | plain washer chamfered grade a_iso_Washer ISO 7090 - 5.sldprt | 43 KB |
| 35 | plain washer normal grade a_iso_Washer ISO 7089 - 5.sldprt | 43 KB |
| 36 | radial ball bearing_68_din_DIN 625 - 6000 - Full,DE,NC,Full_68.sldprt | 80.5 KB |
| 37 | radial ball bearing_68_din_DIN 625 - 6001 - Full,DE,NC,Full_68.sldprt | 80.5 KB |
| 38 | socket button head screw_iso_ISO 7380 - M4 x 12 --- 12N.sldprt | 51 KB |
| 39 | socket button head screw_iso_ISO 7380 - M5 x 20 --- 20N.sldprt | 51 KB |
| 40 | socket button head screw_iso_ISO 7380 - M6 x 16 --- 16N.sldprt | 50.5 KB |
| 41 | socket button head screw_iso_ISO 7380 - M6 x 20 --- 20N.sldprt | 50.5 KB |
| 42 | socket button head screw_iso_ISO 7380 - M6 x 30 --- 30N.sldprt | 50.5 KB |
| 43 | socket countersunk head screw_din_DIN 7991 - M5 x 20 --- 14.8N.sldprt | 49.5 KB |
| 44 | socket countersunk head screw_din_DIN 7991 - M6 x 25 --- 18.7N.sldprt | 48.5 KB |
| 45 | socket countersunk head screw_iso_ISO 10642 - M5 x 16 --- 16N.sldprt | 49 KB |
| 46 | socket countersunk head screw_iso_ISO 10642 - M6 x 16 --- 16N.sldprt | 48.5 KB |
| 47 | socket countersunk head screw_iso_ISO 10642 - M6 x 30 --- 30N.sldprt | 48.5 KB |
| 48 | socket countersunk head screw_iso_ISO 10642 - M8 x 30 --- 30N.sldprt | 48.5 KB |
| 49 | socket head cap screw_din_DIN 912 M4 x 8 --- 8N.sldprt | 51 KB |
| 50 | socket head cap screw_din_DIN 912 M5 x 16 --- 16N.sldprt | 51 KB |
| 51 | socket head cap screw_din_DIN 912 M5 x 20 --- 20N.sldprt | 51 KB |
| 52 | socket head cap screw_din_DIN 912 M6 x 10 --- 10N.sldprt | 51 KB |
| 53 | socket head cap screw_din_DIN 912 M6 x 35 --- 24N.sldprt | 51 KB |
| 54 | socket head cap screw_din_DIN 912 M8 x 12 --- 12N.sldprt | 51.5 KB |
| 55 | socket set screw cup point_din_DIN 916 - M4 x 5-S.sldprt | 49.5 KB |
| 56 | socket set screw cup point_din_DIN 916 - M5 x 5-S.sldprt | 49 KB |
| 57 | 仫桧溴朦 65_80 0,8事_.sldprt | 53.5 KB |
| 58 | 描彡_ 祗趄_6.35x10mm.sldprt | 62.5 KB |
| 59 | 暑眈蝠箨鲨铐睇_镳铘桦__2-7 22.5x80 - 觐镨.sldprt | 110 KB |
| 60 | 暑眈蝠箨鲨铐睇_镳铘桦__2-7 22.5x80.sldprt | 108 KB |
| 61 | 橡铘桦_80_0.sldprt | 109 KB |
| 62 | 署铐彘_SHF16 16mm.sldprt | 76.5 KB |
| 63 | 署铐彘_SHF20 20mm.sldprt | 87 KB |
| 64 | 芈_RM1605 枢疱蜿_.sldprt | 48 KB |
| 65 | 芈_RM1605 铖_Z.sldprt | 44.5 KB |
| 66 | 芈_RM1605.sldprt | 44.5 KB |
| 67 | 芈_RM1605_Y.sldprt | 44.5 KB |
| 68 | 芈_绵殛_SFU-1605.sldprt | 56 KB |
| 69 | 袜镳噔__ 20_40祆.sldprt | 43 KB |
| 70 | 袜镳噔__ 20_46祆.sldprt | 43 KB |
| 71 | 青骅_DIN 472_Circlip DIN 472 - 32 x 1.5.sldprt | 48.5 KB |
| 72 | 髓礤轫 镱澍栾龛_ LM 16UU__㈦啷М_.sldprt | 403 KB |
| 73 | 髓礤轫 镱澍栾龛_ LM 20UU.sldprt | 503 KB |
| 74 | 髓礤轫 镱澍栾龛_ LMK 20UU.sldprt | 496 KB |
| 75 | 髓礤轫 镱澍栾龛_SBR 16UU (觐痫篑).sldprt | 62.5 KB |
| 76 | 髓礤轫 镱澍栾龛_SBR 16UU.sldasm | 106 KB |
| 77 | 髓礤轫 镱澍栾龛_SCS 20UU (觐痫篑).sldprt | 87.5 KB |
| 78 | 髓礤轫 镱澍栾龛_SCS 20UU.sldasm | 104 KB |
免责申明:
本网站模型由用户自行上传，如权利人发现存在误传其作品情形，请及时与本站联系。
立即下载
此图纸下载需要36金币
图纸ID：731404
文件大小：14.37M
软件版本：SOLIDWORKS 2012
图纸格式：sldprt,sldasm
参数/编辑：可修改，包括参数
上传时间：2025-04-13
图纸介绍：
