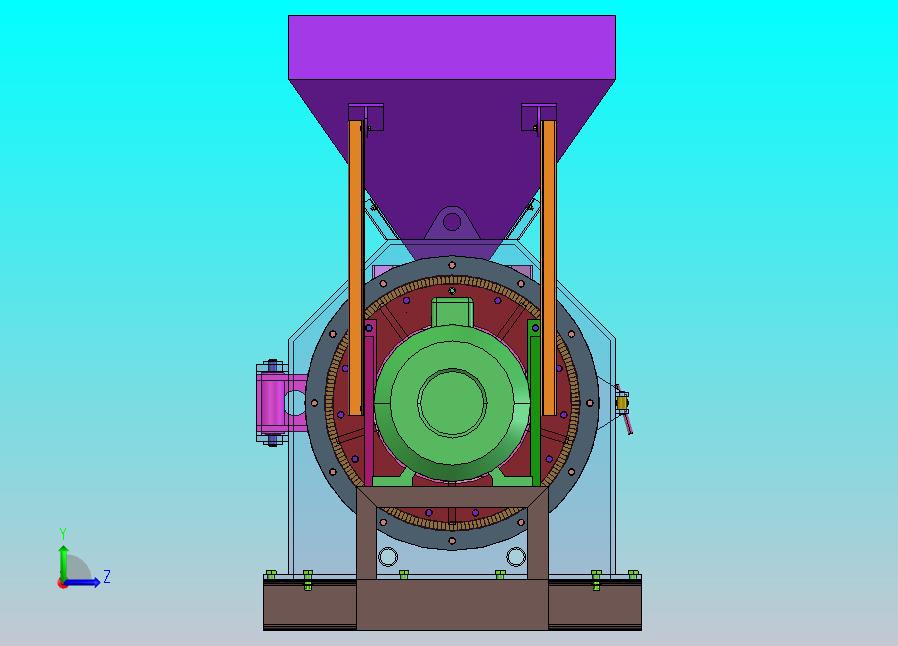

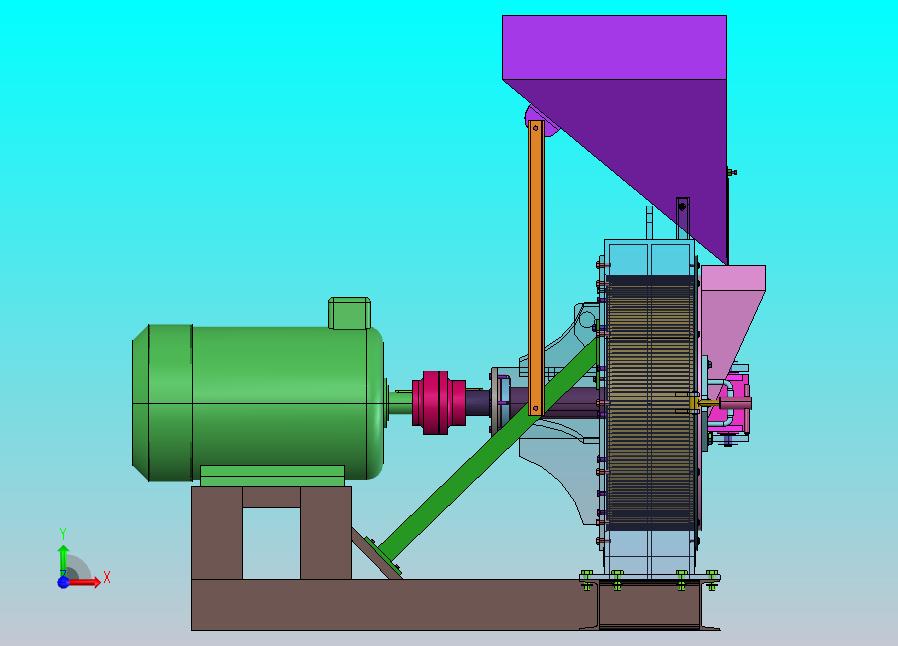

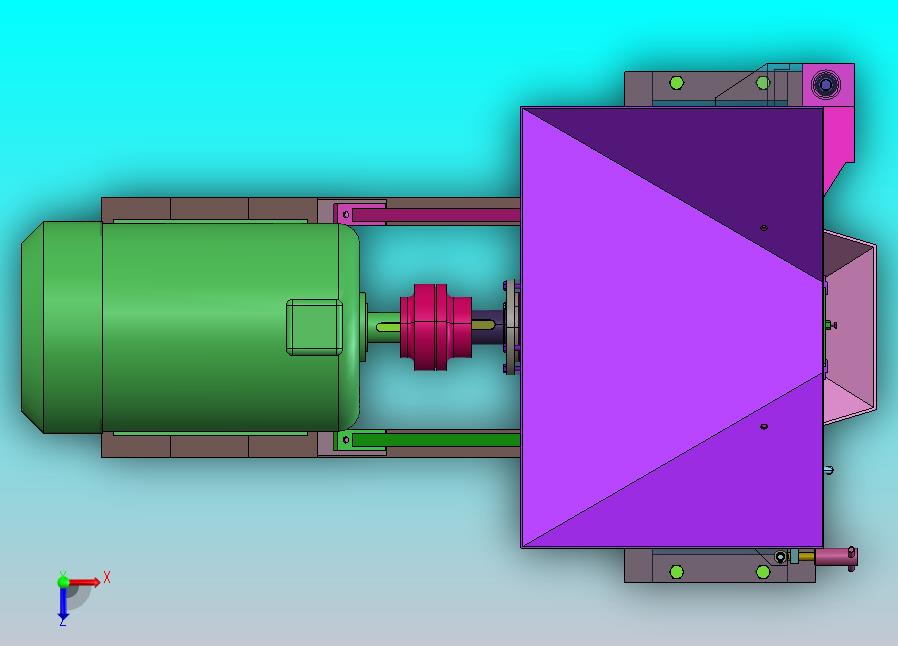

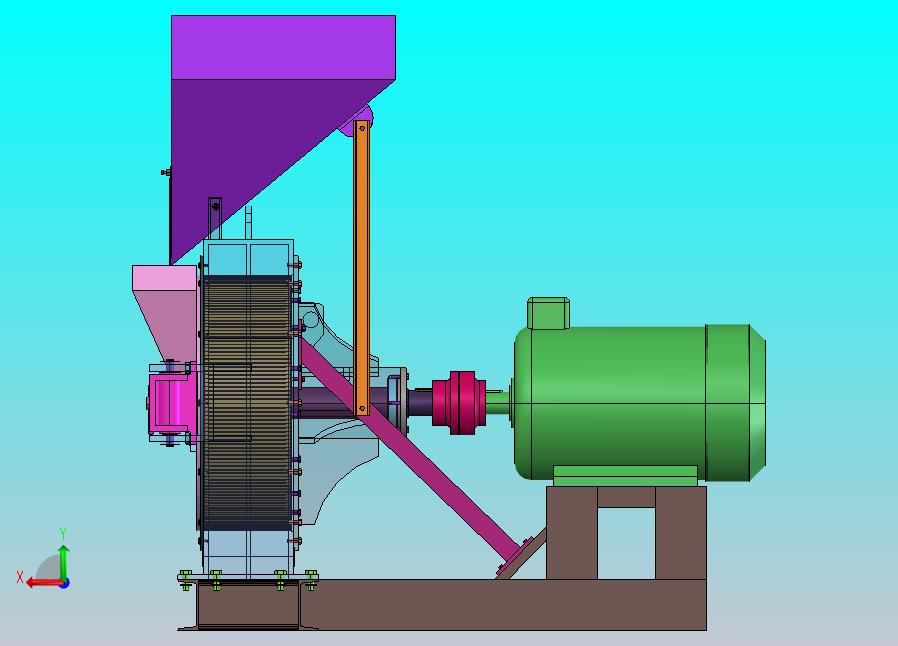

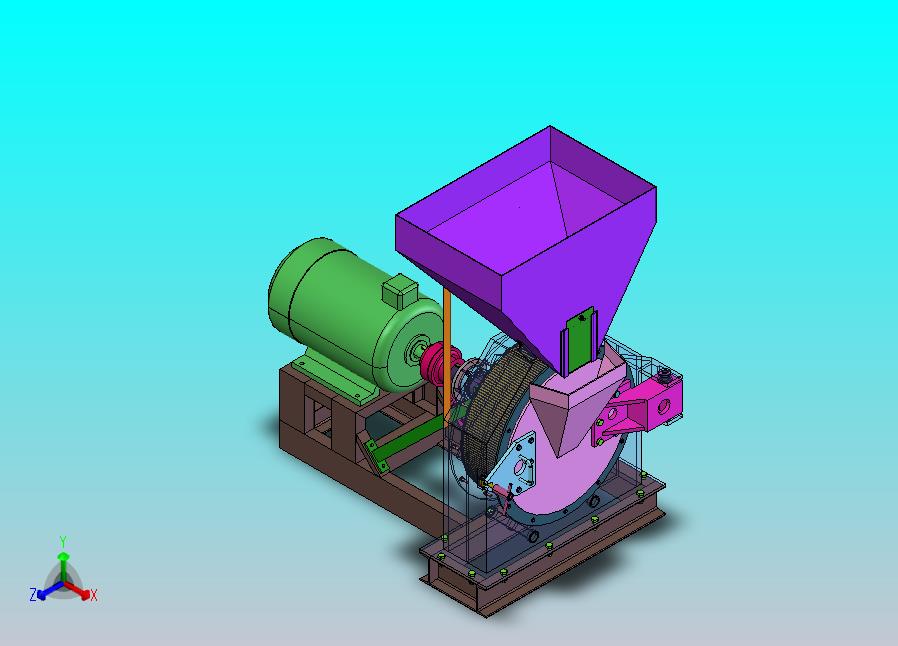

SSGK粉末磨机（ID:731574）
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | N-Eupex B coupling.sldprt | 81.6 KB |
| 2 | WDR DIN 3760.sldprt | 39.2 KB |
| 3 | angle iron-1_Default_As Machined_.sldprt | 30.9 KB |
| 4 | arm-1_Default_As Machined_.sldprt | 50.9 KB |
| 5 | arm-2_Default_As Machined_.sldprt | 51.1 KB |
| 6 | blaed-filter.sldprt | 28.4 KB |
| 7 | body_Default_As Machined_.sldprt | 161 KB |
| 8 | boush-spacer.sldprt | 29.7 KB |
| 9 | chakosh.sldprt | 36.9 KB |
| 10 | circlip for bores normal_din_Circlip DIN 472 - 52 x 2.sldprt | 39.5 KB |
| 11 | circlip for shafts normal_din_Circlip DIN 471 - 15 x 1.sldprt | 37.5 KB |
| 12 | circlip for shafts normal_din_Circlip DIN 471 - 18 x 1.2.sldprt | 37.3 KB |
| 13 | curved spring lock washer_din_Spring washer DIN 128 - A12.sldprt | 30.1 KB |
| 14 | curved spring lock washer_din_Spring washer DIN 128 - A16.sldprt | 29.9 KB |
| 15 | curved spring lock washer_din_Spring washer DIN 128 - A20.sldprt | 31 KB |
| 16 | darb-ghif.sldprt | 43.2 KB |
| 17 | darposh.sldprt | 38.8 KB |
| 18 | door.sldprt | 55 KB |
| 19 | ghif.sldprt | 63.7 KB |
| 20 | hammer mill.sldasm | 1.85 MB |
| 21 | hex nut gradec_din_Hexagon Nut ISO 4034 - M10 - N.sldprt | 49.7 KB |
| 22 | hex nut gradec_din_Hexagon Nut ISO 4034 - M16 - C.sldprt | 50.2 KB |
| 23 | hex nut gradec_din_Hexagon Nut ISO 4034 - M8 - N.sldprt | 50.3 KB |
| 24 | hex screw gradeab_din_ISO 4017 - M12 x 35-C.sldprt | 45.9 KB |
| 25 | hex screw gradeab_din_ISO 4017 - M12 x 40-N.sldprt | 45.3 KB |
| 26 | hex screw gradeab_din_ISO 4017 - M12 x 45-N.sldprt | 44.9 KB |
| 27 | hex screw gradeab_din_ISO 4017 - M12 x 55-N.sldprt | 45.7 KB |
| 28 | hex screw gradeab_din_ISO 4017 - M20 x 50-N.sldprt | 45.2 KB |
| 29 | hex screw gradeab_din_ISO 4017 - M20 x 55-N.sldprt | 45 KB |
| 30 | hex screw gradeab_din_ISO 4017 - M8 x 20-C.sldprt | 44.6 KB |
| 31 | hex screw gradeab_din_ISO 4017 - M8 x 25-C.sldprt | 46 KB |
| 32 | lola-A.sldprt | 60.5 KB |
| 33 | motor.sldprt | 94.5 KB |
| 34 | nut-lock.sldprt | 75.1 KB |
| 35 | nut.sldprt | 52.8 KB |
| 36 | parallel_din_Parallel key A20 x 12 x 125 DIN 6885.sldprt | 30.3 KB |
| 37 | parallel_din_Parallel key A22 x 14 x 125 DIN 6885.sldprt | 30.2 KB |
| 38 | parallel_din_Parallel key A22 x 14 x 80 DIN 6885.sldprt | 30.6 KB |
| 39 | parre.sldprt | 75.6 KB |
| 40 | pin-lock.sldprt | 39 KB |
| 41 | pin.sldprt | 37.4 KB |
| 42 | plaet-lock.sldprt | 47.3 KB |
| 43 | radial ball bearing_68_din_DIN 625 - 6205 - 12,DE,AC,12_68.sldprt | 603 KB |
| 44 | radial ball bearing_68_din_DIN 625 - 6218 - 14,DE,AC,14_68.sldprt | 797 KB |
| 45 | ring-bottom.sldprt | 45.1 KB |
| 46 | ring-front.sldprt | 47.4 KB |
| 47 | screw-lock.sldprt | 108 KB |
| 48 | shaci_Default_As Machined_.sldprt | 305 KB |
| 49 | shaft.sldprt | 66.4 KB |
| 50 | socket head cap screw_din_DIN 912 M20 x 55 --- 55N.sldprt | 38 KB |
| 51 | taper roller bearing_din_DIN 720 - 30205 - 14,DE,AC,14.sldprt | 247 KB |
| 52 | yataghan.sldprt | 146 KB |
| 53 | 免责声明.txt | 626 B |
免责申明:
本网站模型由用户自行上传，如权利人发现存在误传其作品情形，请及时与本站联系。
立即下载
此图纸下载需要200金币
图纸ID：731574
文件大小：6.11M
软件版本：SOLIDWORKS
图纸格式：sldprt,sldasm
参数/编辑：可修改，包括参数
上传时间：2025-04-13
图纸介绍：
