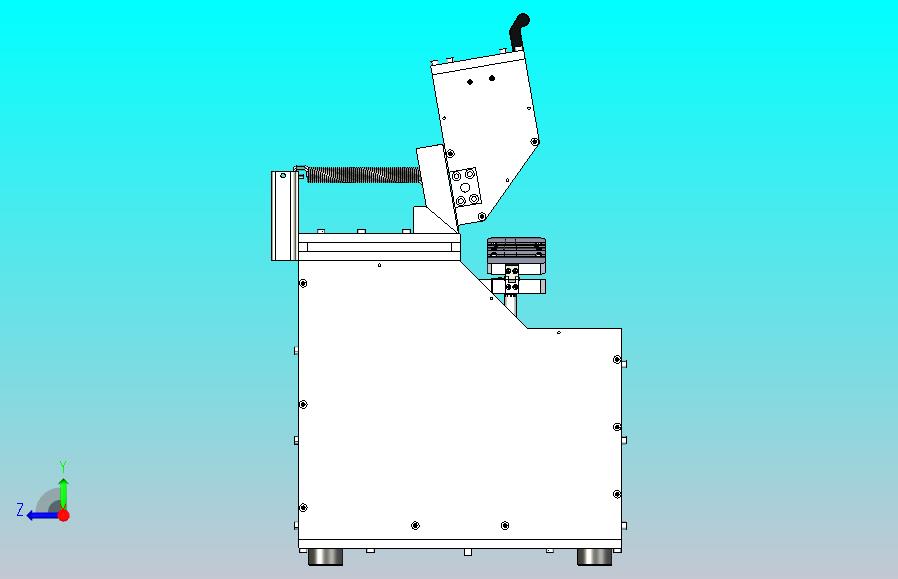

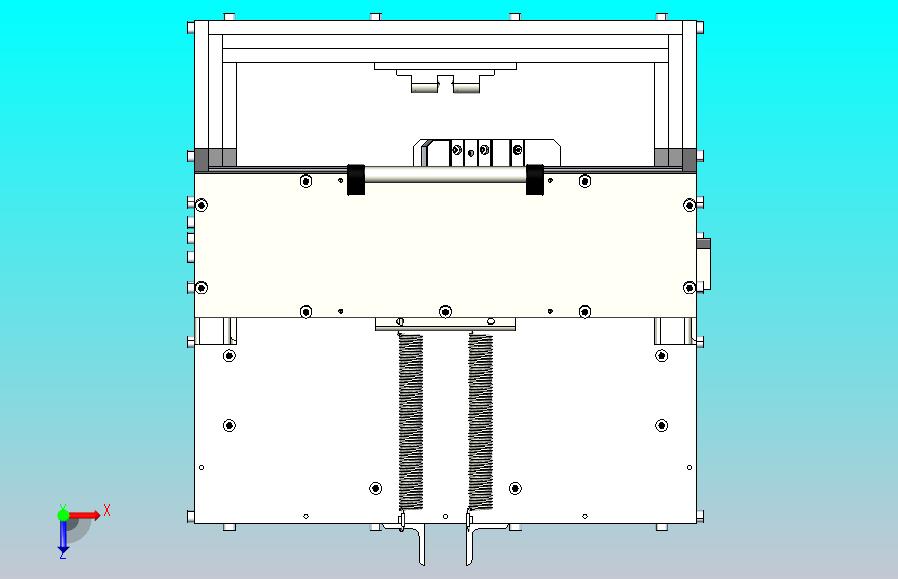

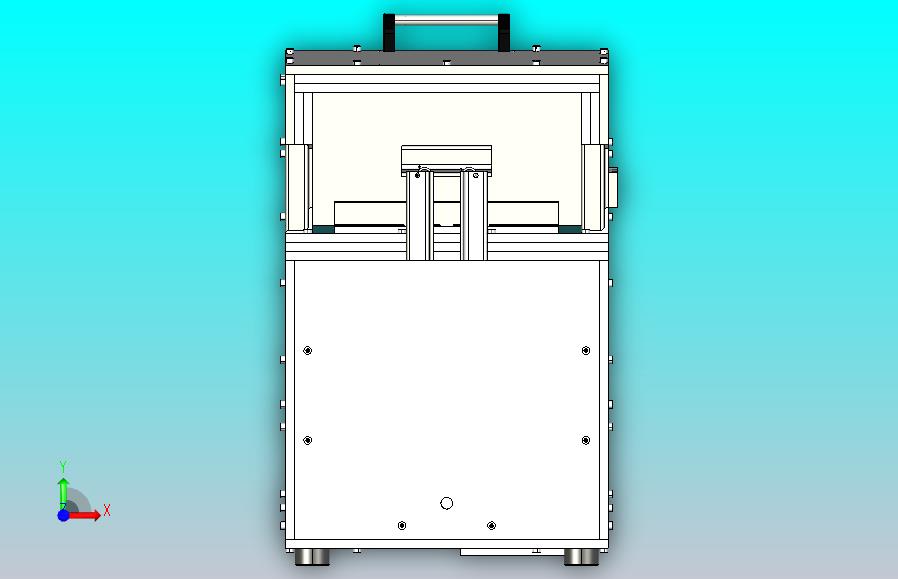

隔音箱（ID:735986）
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 8020-2134 Sliding Door Configuration_Ball Latch.sldprt | 45 KB |
| 2 | 8020-2134 Sliding Door Configuration_Cap.sldprt | 44.5 KB |
| 3 | 8020-2134 Sliding Door Configuration_Latch Plate.sldprt | 45 KB |
| 4 | 8020-2134 Sliding Door Configuration_Latch.sldprt | 45 KB |
| 5 | 8020-2134 Sliding Door Configuration_Strike Plate.sldprt | 45 KB |
| 6 | Acoustic box.IGS | 16.1 MB |
| 7 | Bottom-T4 outside.sldprt | 44.5 KB |
| 8 | Bottom-T4_Bottom.sldprt | 44.5 KB |
| 9 | Bushing Ø5.sldprt | 44.5 KB |
| 10 | D700 receiver.sldprt | 44.5 KB |
| 11 | Fix-Latch.sldprt | 44.5 KB |
| 12 | Foot pedal holder two.sldprt | 44.5 KB |
| 13 | Front cover-outside.sldprt | 44.5 KB |
| 14 | Front cover.sldprt | 44.5 KB |
| 15 | Front-T4_Front.sldprt | 44.5 KB |
| 16 | Front-T4_Outside.sldprt | 44.5 KB |
| 17 | HTC EVO shift receiver(OEM).sldprt | 44.5 KB |
| 18 | Hinge 1.sldprt | 44.5 KB |
| 19 | Hinge 2.sldprt | 44.5 KB |
| 20 | Hinge one.sldprt | 44.5 KB |
| 21 | Hinge one_HInge 2.sldprt | 44.5 KB |
| 22 | Hinge shaft.sldprt | 44.5 KB |
| 23 | Incredible receiver.sldprt | 44.5 KB |
| 24 | Latch.sldprt | 44.5 KB |
| 25 | Left-T4_Left.sldprt | 44.5 KB |
| 26 | Left-T4_Outside.sldprt | 44.5 KB |
| 27 | M2 SHCS.sldprt | 44.5 KB |
| 28 | M3 SHCS.sldprt | 44.5 KB |
| 29 | M3 setscrew with soft tip.sldprt | 44.5 KB |
| 30 | M4 SHCS.sldprt | 44.5 KB |
| 31 | M4-25mm.sldprt | 44.5 KB |
| 32 | M5 setscrew.sldprt | 44.5 KB |
| 33 | M5-10mm.sldprt | 44.5 KB |
| 34 | M5-15mm.sldprt | 44.5 KB |
| 35 | M5-25mm.sldprt | 44.5 KB |
| 36 | M5-35mm.sldprt | 44.5 KB |
| 37 | MICROPHONE ECM8000.sldprt | 44.5 KB |
| 38 | Main Pogo pin holder.sldprt | 44.5 KB |
| 39 | Main Pogo pin holder_Main pogo holder-Incredible.sldprt | 45 KB |
| 40 | Mic back support.sldprt | 44.5 KB |
| 41 | Mic clamp.sldprt | 44.5 KB |
| 42 | Mic holder.sldprt | 44.5 KB |
| 43 | Mic stand plate.sldprt | 44.5 KB |
| 44 | Mic stand.sldprt | 44.5 KB |
| 45 | Pogo pin holder.sldprt | 44.5 KB |
| 46 | Pogo pin.sldprt | 44.5 KB |
| 47 | Receiver holder.sldprt | 44.5 KB |
| 48 | Rigth-T4_Outside.sldprt | 44.5 KB |
| 49 | Rigth-T4_Rigth.sldprt | 44.5 KB |
| 50 | Rubber foot.sldprt | 44.5 KB |
| 51 | Side cover left-outside.sldprt | 44.5 KB |
| 52 | Side cover left.sldprt | 44.5 KB |
| 53 | Side cover rigth-outside.sldprt | 44.5 KB |
| 54 | Side cover rigth.sldprt | 44.5 KB |

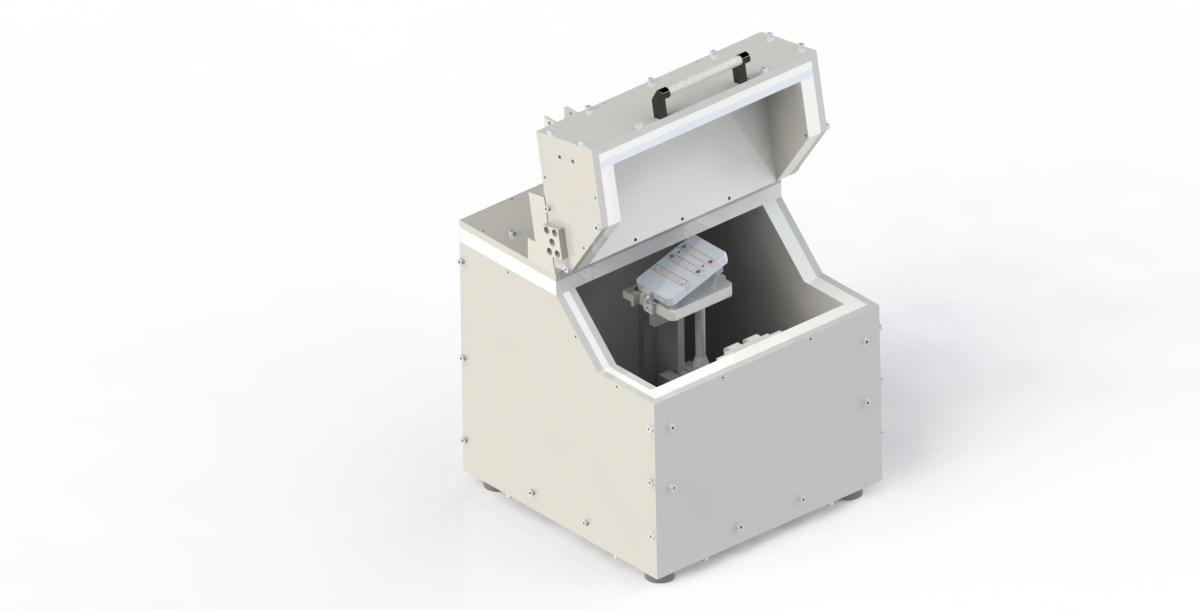

| 55 | Soundproof_box.png | 631 KB |
| 56 | Spacer cover straight.sldprt | 44.5 KB |
| 57 | Spacer cover straight_Short.sldprt | 44.5 KB |
| 58 | Spacer cover_Left.sldprt | 44.5 KB |
| 59 | Spacer-side cover rigth small.sldprt | 44.5 KB |
| 60 | Spacer-side cover rigth.sldprt | 44.5 KB |
| 61 | Spacer-top cover long.sldprt | 44.5 KB |
| 62 | Spacer-top cover.sldprt | 44.5 KB |
| 63 | Spacer-top side.sldprt | 44.5 KB |
| 64 | Spacer-top.sldprt | 44.5 KB |
| 65 | Spring support.sldprt | 44.5 KB |
| 66 | Spring support_SingleAs Machined.sldprt | 44.5 KB |
| 67 | Spring-Ø5.0mm.sldprt | 44.5 KB |
| 68 | Spring.sldprt | 44.5 KB |
| 69 | Support Angle bar.sldprt | 44.5 KB |
| 70 | Tension spring.sldprt | 44.5 KB |
| 71 | Top Cover-small outside.sldprt | 44.5 KB |
| 72 | Top Cover-small.sldprt | 44.5 KB |
| 73 | Top Cover.sldprt | 44.5 KB |
| 74 | Top Cover_Outside.sldprt | 44.5 KB |
| 75 | Wall widest-T4.sldprt | 44.5 KB |
| 76 | Wall widest-T4_Outside.sldprt | 44.5 KB |

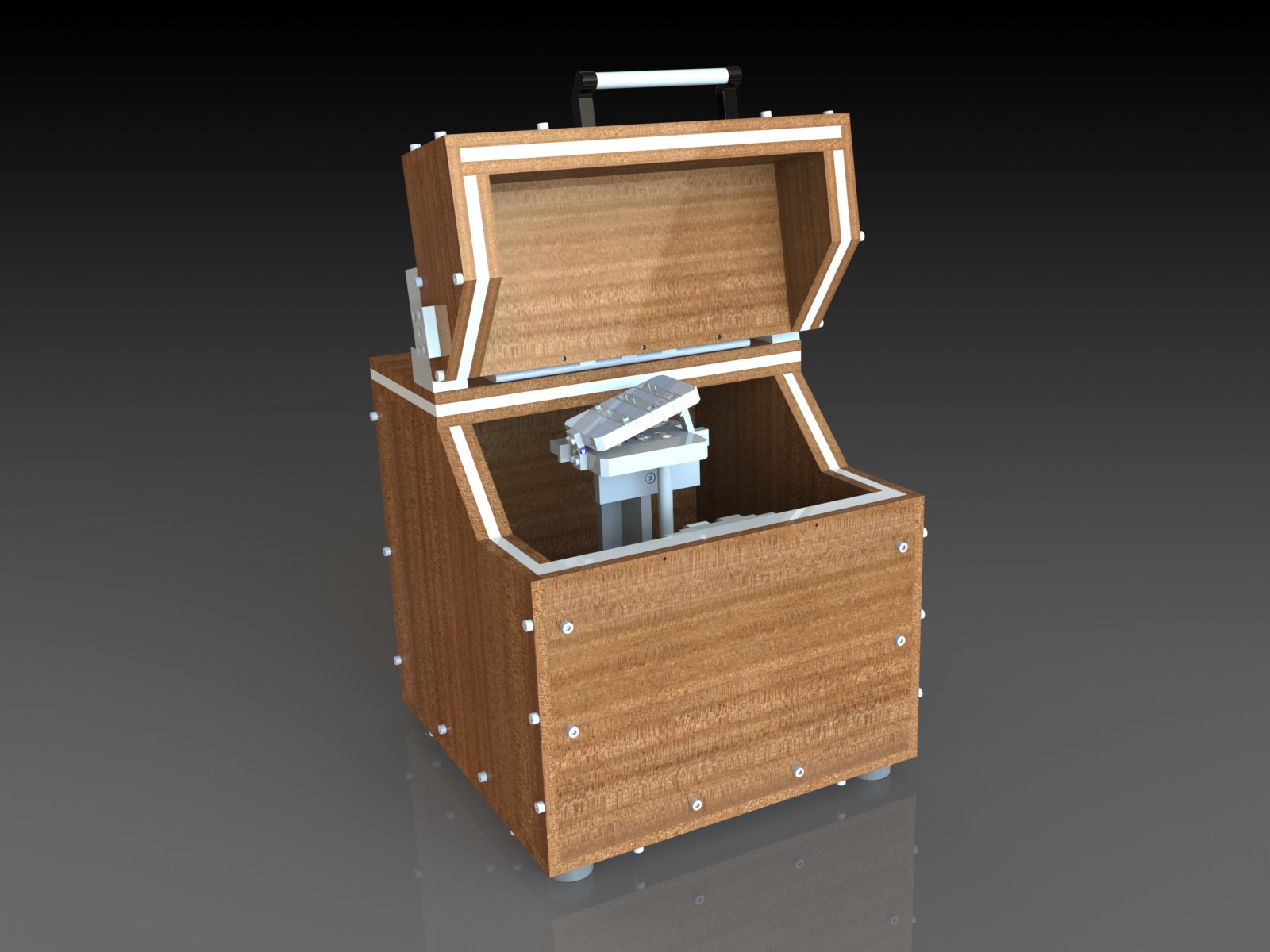

| 77 | box.JPG | 194 KB |
| 78 | ring_3cm1-3.sldprt | 44.5 KB |
| 79 | ug-06_128_01_01.sldprt | 44.5 KB |
| 80 | ug-06_128_01_02.sldprt | 44.5 KB |
| 81 | ug-06_128_01_03.sldprt | 44.5 KB |
免责申明:
本网站模型由用户自行上传，如权利人发现存在误传其作品情形，请及时与本站联系。
立即下载
此图纸下载需要21金币
图纸ID：735986
文件大小：2.91M
软件版本：IGS,SOLIDWORKS
图纸格式：sldprt,igs
参数/编辑：可修改，包括参数
上传时间：2025-04-20
图纸介绍：
