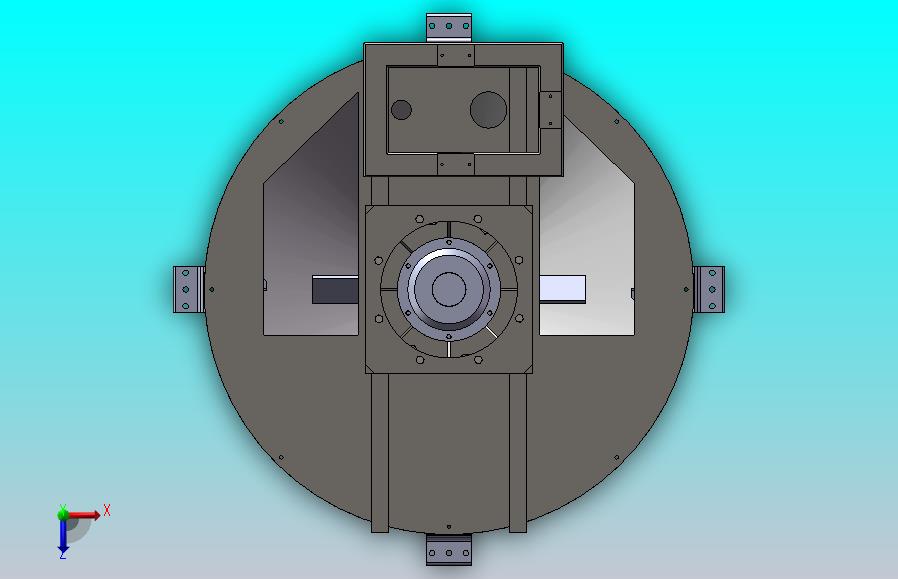

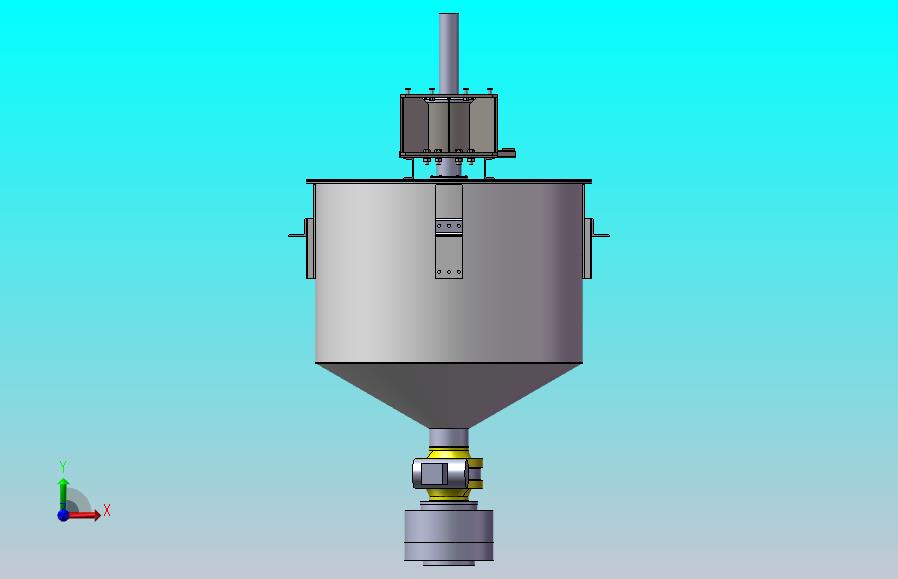

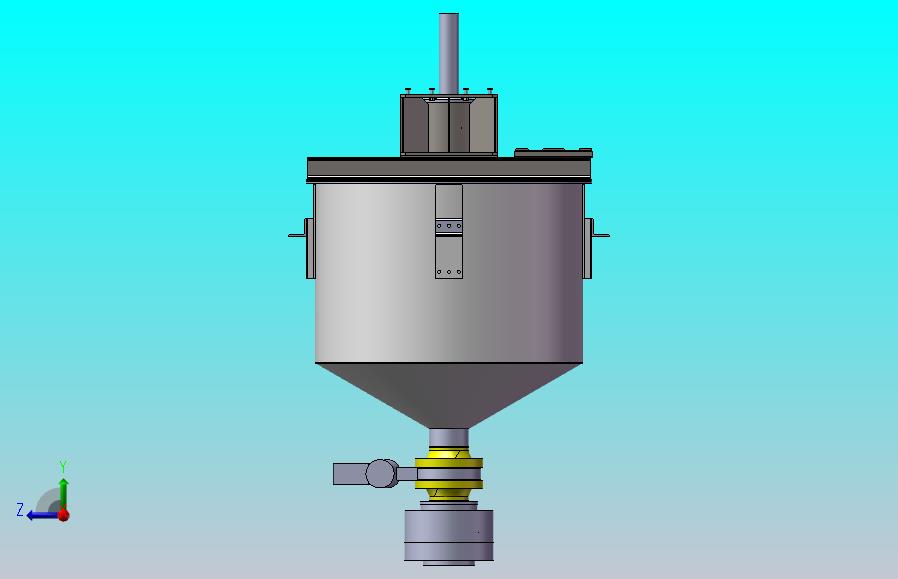

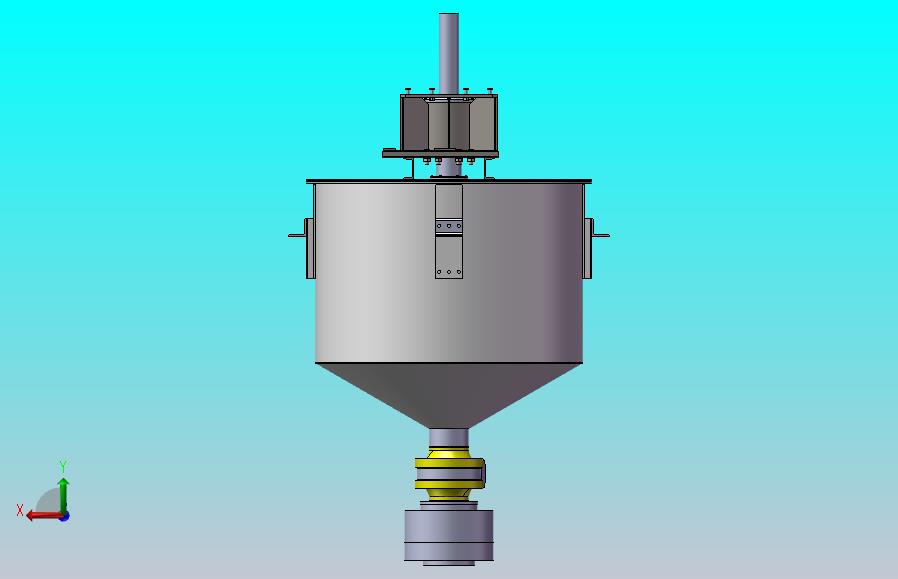

A13 大型混合机（ID:793482）
| # | 文件名称 | 文件大小 |
|---|---|---|

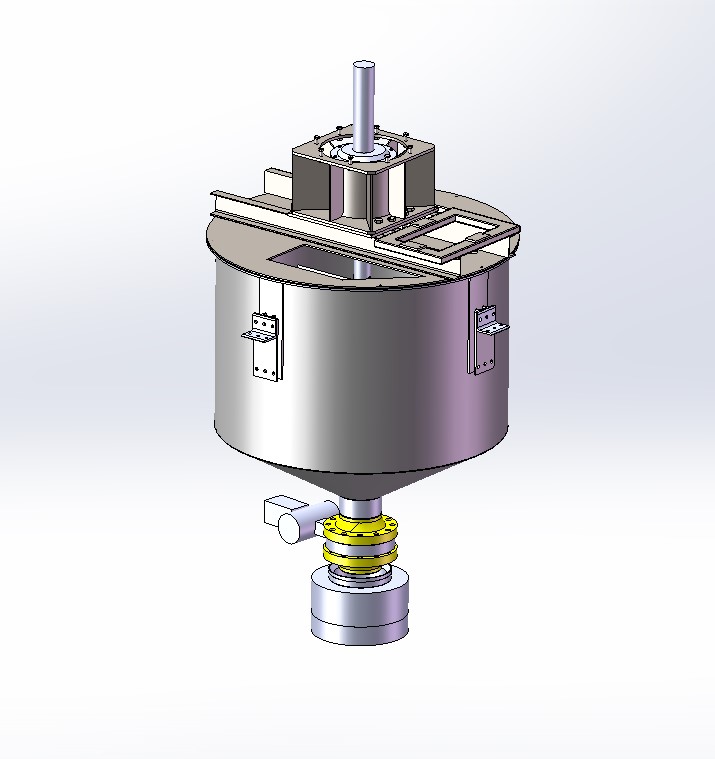

| 1 | A13 大型混合机.JPG | 53.3 KB |
| 2 | Curved Spring Lock Washer_DIN_Spring washer DIN 128 - A12.sldprt | 61 KB |
| 3 | Hex Bolt GradeAB_DIN_ISO 4014 - M8 x 40 x 40-N.sldprt | 62.5 KB |
| 4 | Hex Bolt GradeB_DIN_ISO 4015 - M8 x 30 x 30-N.sldprt | 60.5 KB |
| 5 | Hex Head Structural Bolt_DIN_DIN 7990 - M12 x 60-WN.sldprt | 61 KB |
| 6 | Hex Nut GradeC_DIN_Hexagon Nut ISO 4034 - M12 - N.sldprt | 63.5 KB |
| 7 | Hex Nut High Strength_DIN_Hexagon Nut DIN 6915 - M22 - N.sldprt | 63.5 KB |
| 8 | High Strength Hex Head Bolt_DIN_DIN 6914 - M22 x 70 x 32-N.sldprt | 66 KB |
| 9 | Lock nut HM3060.sldprt | 73.5 KB |
| 10 | Lock washer M24.sldprt | 56 KB |
| 11 | Locl nut KM24.sldprt | 63 KB |
| 12 | PL stand housing.sldprt | 58 KB |
| 13 | Spring Lock Washer 2_DIN_DIN 6905-9.3-FSt.sldprt | 66.5 KB |
| 14 | Tank body.sldprt | 110 KB |
| 15 | baffle1.sldprt | 55 KB |
| 16 | baffle2.sldprt | 56.5 KB |
| 17 | blade belt1.sldprt | 68 KB |
| 18 | blde 2.sldprt | 60 KB |
| 19 | blde1.sldprt | 55.5 KB |
| 20 | curved spring lock washer_din_Spring washer DIN 128 - A16.sldprt | 61.5 KB |
| 21 | curved spring lock washer_din_Spring washer DIN 128 - A22.sldprt | 62 KB |
| 22 | curved spring lock washer_din_Spring washer DIN 128 - A8.sldprt | 61 KB |
| 23 | double unp120.sldprt | 103 KB |
| 24 | down housing.sldprt | 57.5 KB |
| 25 | frame-.sldprt | 59.5 KB |
| 26 | hex head structural bolt_din_DIN 7990 - M16 x 60-WN.sldprt | 61 KB |
| 27 | hex nut gradec_din_Hexagon Nut ISO 4034 - M16 - N.sldprt | 63.5 KB |
| 28 | hex nut gradec_din_Hexagon Nut ISO 4034 - M8 - N.sldprt | 63.5 KB |
| 29 | housing body.sldprt | 102 KB |
| 30 | housing cap.sldprt | 58.5 KB |
| 31 | inner spacer.sldprt | 54.5 KB |
| 32 | inner spacer1.sldprt | 54.5 KB |
| 33 | outer spacer.sldprt | 72.5 KB |
| 34 | outer spacer1.sldprt | 54.5 KB |
| 35 | parallel_din_Parallel key A25 x 14 x 200 DIN 6885.sldprt | 63.5 KB |
| 36 | pipe special.sldprt | 56 KB |
| 37 | pipe12inch.sldprt | 54.5 KB |
| 38 | pnuma wafer valve DN200-PN10 -8INCH.MIRAB.sldprt | 63 KB |
| 39 | seal ,RDI 011576,HUNGER.sldprt | 54.5 KB |
| 40 | seal ,RDI 022760,HUNGER.sldprt | 54.5 KB |
| 41 | seal RDI-011541-Hunger.sldprt | 54.5 KB |
| 42 | seal RDI-011550-Hunger.sldprt | 54.5 KB |
| 43 | seal flang.sldprt | 56 KB |
| 44 | seal housing.sldprt | 57 KB |
| 45 | shaft.sldprt | 69.5 KB |
| 46 | taper roller bearing_skf_SKF - 32324 - Full,DE,AC,Full.sldprt | 167 KB |
| 47 | taper roller bearing_skf_SKF - 32960 - Full,DE,AC,Full.sldprt | 294 KB |
| 48 | up housing.sldprt | 59 KB |
| 49 | up ring.sldprt | 57 KB |
| 50 | upper flang seal.sldprt | 57 KB |
| 51 | upper ring.sldprt | 62 KB |
| 52 | welding neck flange8inch,sch400_WNeck Flange 400-NPS8.sldprt | 61 KB |
| 53 | 大型混合机.SLDASM | 1.4 MB |
| 54 | 大型混合机.rpt | 3.01 KB |
免责申明:
本网站模型由用户自行上传，如权利人发现存在误传其作品情形，请及时与本站联系。
立即下载
此图纸下载需要200金币
图纸ID：793482
文件大小：2.74M
软件版本：SOLIDWORKS 2016
图纸格式：sldprt,sldasm
参数/编辑：可修改，包括参数
上传时间：2025-06-09
图纸介绍：
