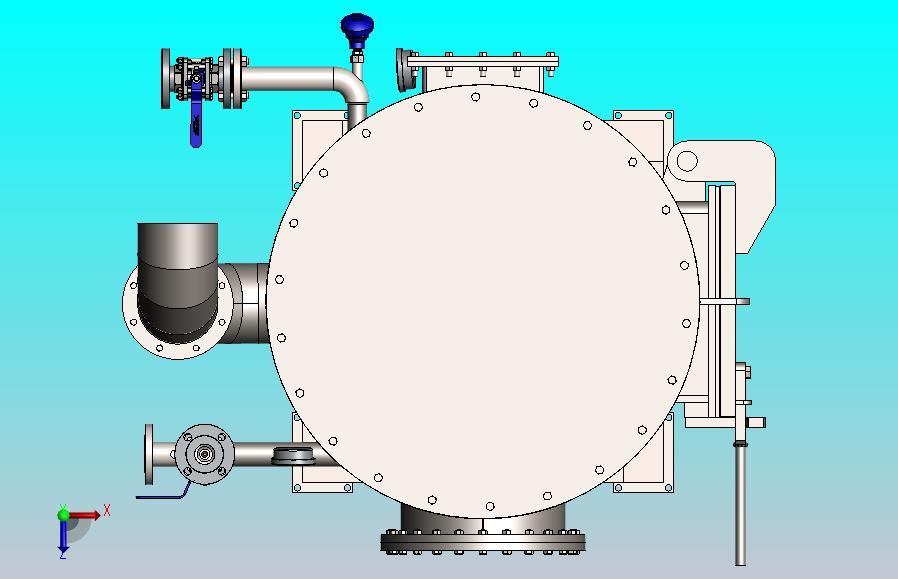

热力热工设备3D数模图纸 Solidworks设计（ID:803744）
12
0
0
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | ALV-004-00-000 MTG UND. TERMICA V.SLDASM | 5.43 MB |
| 2 | ALV-004-00-001 CH TROCA CALOR INF UND. TERMICA V.SLDPRT | 99.5 KB |
| 3 | ALV-004-00-002 FLANGE INFERIOR UND. TERMICA V.SLDPRT | 113 KB |
| 4 | ALV-004-00-003 TUBO TROCAR CENTRAL UND. TERMICA V.SLDPRT | 62 KB |
| 5 | ALV-004-00-004 TUBO EXTERNO UND. TERMICA V.SLDPRT | 143 KB |
| 6 | ALV-004-00-005 TUBO ENCAIXE UND. TERMICA V.SLDPRT | 596 KB |
| 7 | ALV-004-00-006 CH CORTA FOGO UND. TERMICA V.SLDPRT | 322 KB |
| 8 | ALV-004-00-007 ESPELHO INFERIOR UND. TERMICA V.SLDPRT | 238 KB |
| 9 | ALV-004-00-008 ESPELHO SUPERIOR UND. TERMICA V.SLDPRT | 239 KB |
| 10 | ALV-004-00-009 TUBO DE 3POL UND. TERMICA V.SLDPRT | 59.7 KB |
| 11 | ALV-004-00-010 CH CORPO UND. TERMICA V.SLDPRT | 429 KB |
| 12 | ALV-004-00-011 CH CORTA FOGO UND. TERMICA V.SLDPRT | 209 KB |
| 13 | ALV-004-00-012 FLANGE SUPERIOR UND. TERMICA V.SLDPRT | 178 KB |
| 14 | ALV-004-00-013 TUBO PORTA DE VISITA UND. TERMICA V.SLDPRT | 140 KB |
| 15 | ALV-004-00-014 FLANGE PORTA DE VISITA UND. TERMICA V.SLDPRT | 196 KB |
| 16 | ALV-004-00-015 TAMPA PORTA DE VISITA UND. TERMICA V.SLDPRT | 180 KB |
| 17 | ALV-004-00-016 TAMPA SUPERIOR UND. TERMICA V.SLDPRT | 167 KB |
| 18 | ALV-004-00-017 MEIO TUBO DEFLETOR UND. TERMICA V.SLDPRT | 123 KB |
| 19 | ALV-004-00-018 CH TUBO DEFLETOR UND. TERMICA V.SLDPRT | 95 KB |
| 20 | ALV-004-00-019 TUBO SAIDA EXAUSTAO UND. TERMICA V.SLDPRT | 157 KB |
| 21 | ALV-004-00-020 MEIA LUA DEFLETORA UND. TERMICA V.SLDPRT | 148 KB |
| 22 | ALV-004-00-021 CH DA MEIA LUA DEFLETORA UND. TERMICA V.SLDPRT | 112 KB |
| 23 | ALV-004-00-022 CURVA DUTO SAIDA UND. TERMICA V.SLDPRT | 1.17 MB |
| 24 | ALV-004-00-023 PORTA DE VISITA INFERIOR UND. TERMICA V.SLDPRT | 195 KB |
| 25 | ALV-004-00-024 CURVA 2POL LUVA SENSOR UND. TERMICA V.SLDPRT | 248 KB |
| 26 | ALV-004-00-025 TUBO 2POL UND. TERMICA V.SLDPRT | 60.5 KB |
| 27 | ALV-004-00-026 FLANGE 2 POL UND. TERMICA V.SLDPRT | 99.1 KB |
| 28 | ALV-004-00-027 TUBO 2POL UND. TERMICA V.SLDPRT | 58.4 KB |
| 29 | ALV-004-00-028 T 2 POL UND. TERMICA V.SLDPRT | 197 KB |
| 30 | ALV-004-00-029 TUBO 2POL UND. TERMICA V.SLDPRT | 68.4 KB |
| 31 | ALV-004-00-030 JUNTA AMIANTO 2POL UND. TERMICA V.SLDPRT | 121 KB |
| 32 | ALV-004-00-031 OLHEU DE IÇAR UND. TERMICA V.SLDPRT | 132 KB |
| 33 | ALV-004-00-032 FECHAMENTO UND. TERMICA V.SLDPRT | 106 KB |
| 34 | ALV-004-00-033 PORTA ABASTEC. UND. TERMICA V.SLDPRT | 160 KB |
| 35 | ALV-004-00-034 FECHO PORTA UND. TERMICA V.SLDPRT | 173 KB |
| 36 | ALV-004-00-035 CH FECHO UND. TERMICA V.SLDPRT | 66.5 KB |
| 37 | ALV-004-00-036 DOBRADICA UND. TERMICA V.SLDPRT | 88.8 KB |
| 38 | ALV-004-00-037 EIXO DOBRADICA UND. TERMICA V.SLDPRT | 80.2 KB |
| 39 | ALV-004-00-038 GUIA DO FECHO UND. TERMICA V.SLDPRT | 87 KB |
| 40 | ALV-004-00-039 PORTA UND. TERMICA V.SLDPRT | 298 KB |
| 41 | ALV-004-00-040 SUP. DOBRADICA UND. TERMICA V.SLDPRT | 81.9 KB |
| 42 | ALV-004-00-041 TRAMELA UND. TERMICA V.SLDPRT | 137 KB |
| 43 | ALV-004-00-042 BATENTE VED. UND. TERMICA V.SLDPRT | 103 KB |
| 44 | ALV-004-00-043 GAXETA CORDA VED. UND. TERMICA V.SLDPRT | 115 KB |
| 45 | ALV-004-00-044 SUPORTE ISOLAMENTO UND. TERMICA V.SLDPRT | 155 KB |
| 46 | ALV-004-00-045 CH ISOLAMENTO UND. TERMICA V.SLDPRT | 1.14 MB |
| 47 | ALV-004-00-046 BASE UND. TERMICA V.SLDPRT | 370 KB |
| 48 | ALV-004-00-047 MAO F. BASE UND. TERMICA V.SLDPRT | 100 KB |
| 49 | ALV-004-00-048 FIXADOR BASE UND. TERMICA V.SLDPRT | 136 KB |
| 50 | ALV-004-02-001 SENSOR PT 100 VARETA 350 UND. TERMICA V.SLDPRT | 324 KB |
| 51 | ALV-004-02-002 VARETA DO SENSOR PT 100 VARETA 350 UND. TERMICA V.SLDPRT | 78.6 KB |
| 52 | ALV-004-02-003 VEDACAO DO SENSOR PT100 VARETA 350 UND. TERMICA V.SLDPRT | 69.7 KB |
| 53 | ALV-004-02-004 PORCA SENSOR PT100 VARETA 350 UND. TERMICA V.SLDPRT | 417 KB |
| 54 | ALV-004-02-005 NIPLE SENSOR PT100 VARETA 350 UND. TERMICA V.SLDPRT | 1.15 MB |
| 55 | ALV-004-03-000 TRILHO 01 GRELHA UND. TERMICA V.SLDPRT | 154 KB |
| 56 | ALV-004-03-000 TRILHO 02 GRELHA UND. TERMICA V.SLDPRT | 228 KB |
| 57 | ALV-004-03-001 TUBO 01 GRELHA UND. TERMICA V.SLDPRT | 108 KB |
| 58 | ALV-004-03-001 TUBO 02 GRELHA UND. TERMICA V.SLDPRT | 112 KB |
| 59 | ALV-004-03-003 TUBO 03 GRELHA UND. TERMICA V.SLDPRT | 107 KB |
| 60 | ALV-004-03-003 TUBO 04 GRELHA UND. TERMICA V.SLDPRT | 123 KB |
| 61 | ALV-004-03-003 TUBO 05 GRELHA UND. TERMICA V.SLDPRT | 124 KB |
| 62 | ALV-004-03-004 CURVA 1,1-2POL RAIO CURTO SCHEDULE 80 GRELHA UND. TERMICA V.SLDPRT | 344 KB |
| 63 | ALV-004-03-004 TUBO 06 GRELHA UND. TERMICA V.SLDPRT | 128 KB |
| 64 | MANOMETRO 210PSI WIKA UND. TERMICA V.SLDPRT | 856 KB |
| 65 | VOLUME DE OLEO-ALV-004-00-000 MTG UND. TERMICA V.SLDPRT | 317 KB |
| 66 | step-ALV-004-00-000 MTG UND. TERMICA V.STEP | 15 MB |
免责申明:
本网站模型由用户自行上传，如权利人发现存在误传其作品情形，请及时与本站联系。
立即下载
此图纸下载需要50金币
图纸ID：803744
文件大小：35.39M
软件版本：SOLIDWORKS 2020,STEP
图纸格式：sldasm,sldprt,step
参数/编辑：可修改，包括参数
上传时间：2025-06-12
图纸介绍：
发布者
屿双网haaa
作品: 1053
粉丝: 3
