带外齿锁紧垫圈的统一钢制锁紧螺母（ID:811899）

设备部件 / 连接与密封 / 带外齿锁紧垫圈的统一钢制锁紧螺母

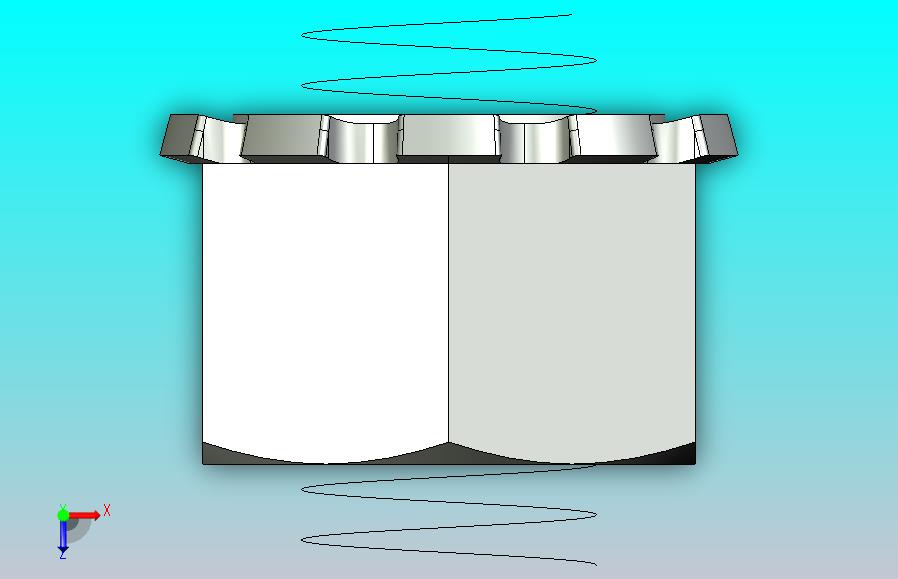

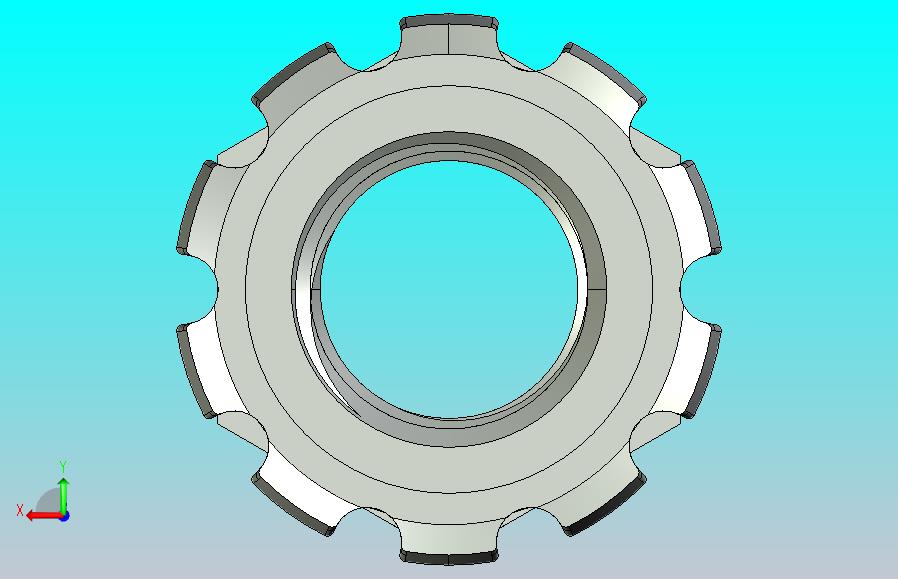

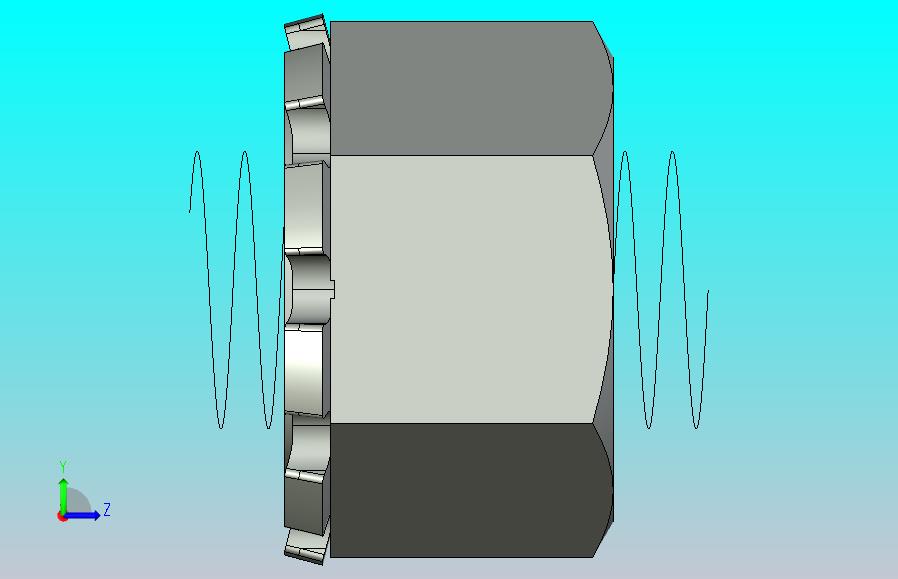

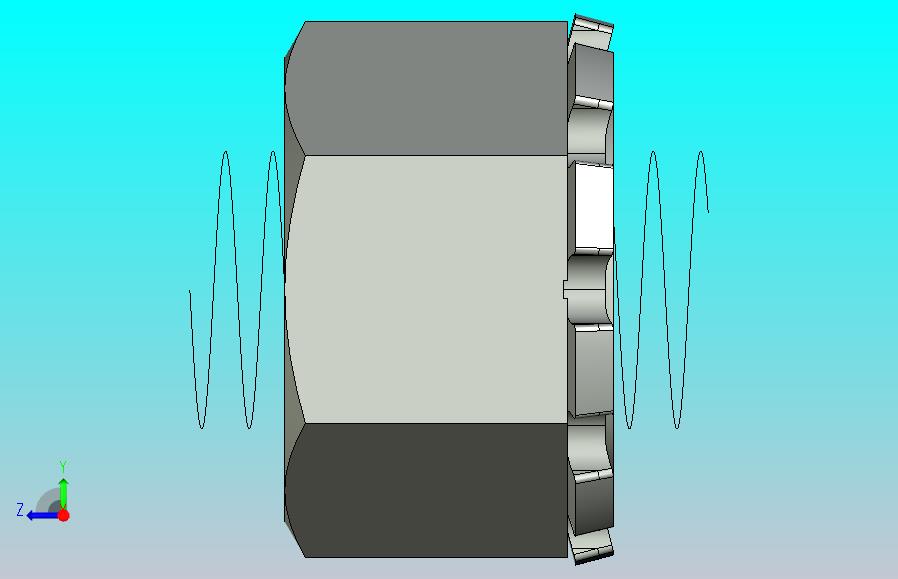

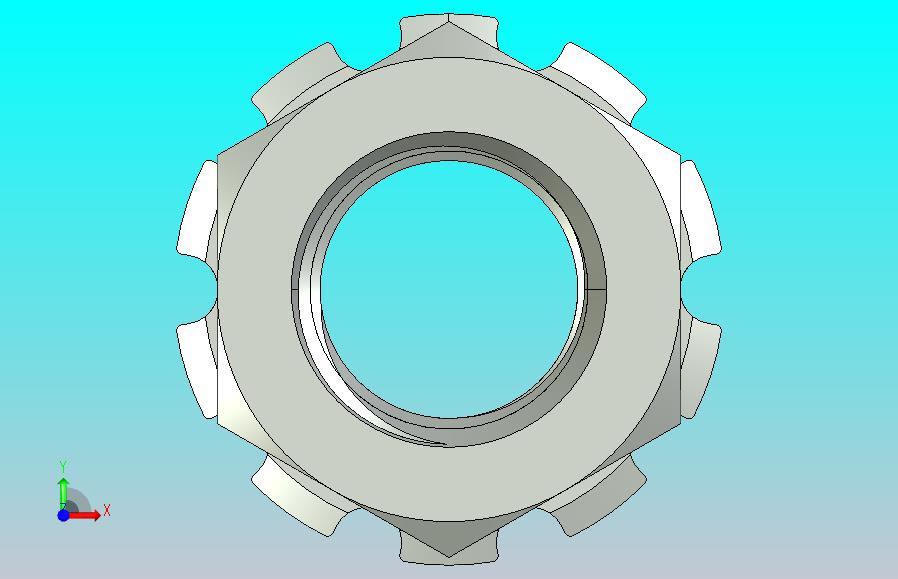

平面图

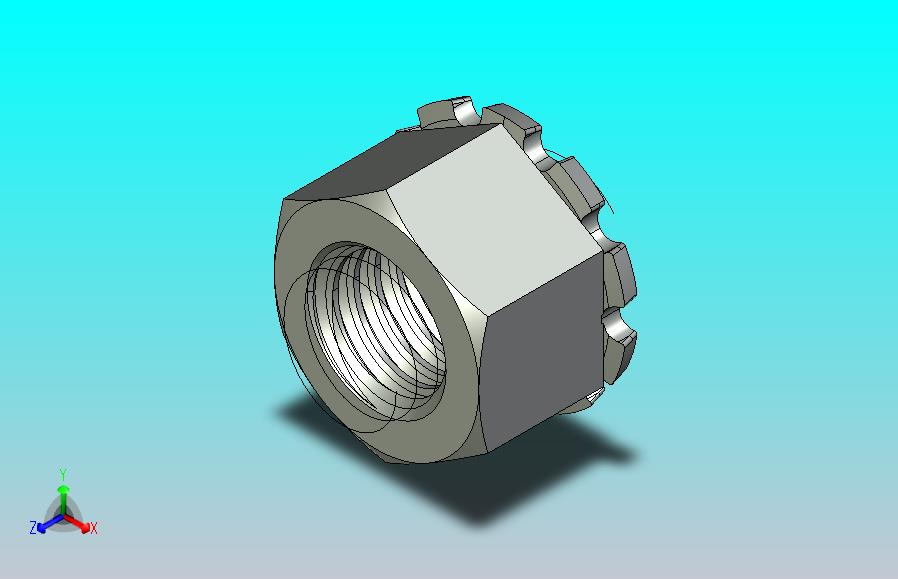

3D视图

文件列表

屿双网

屿双网

#	文件名称	文件大小

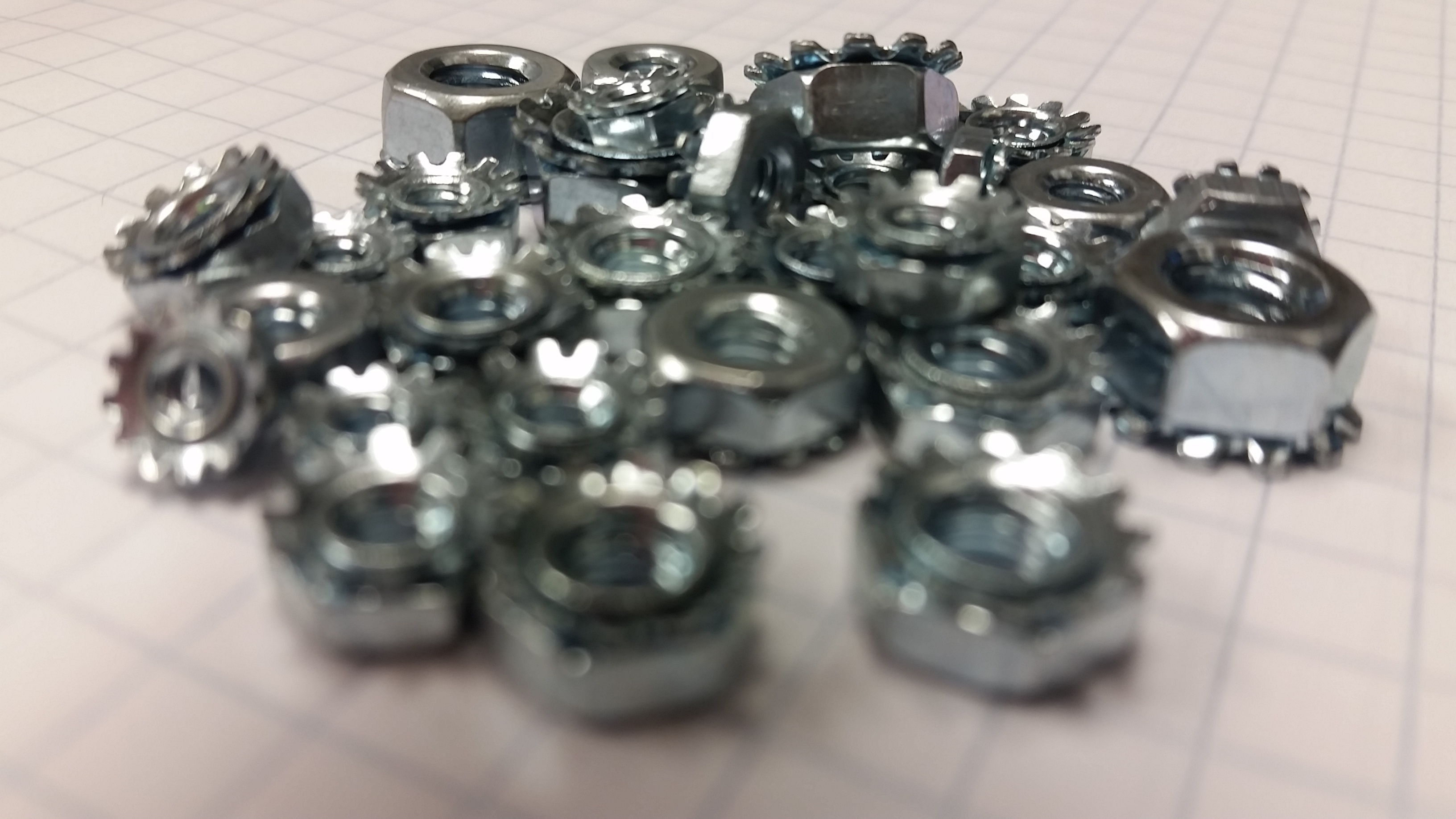

1	20170215_133303.jpg	1.29 MB

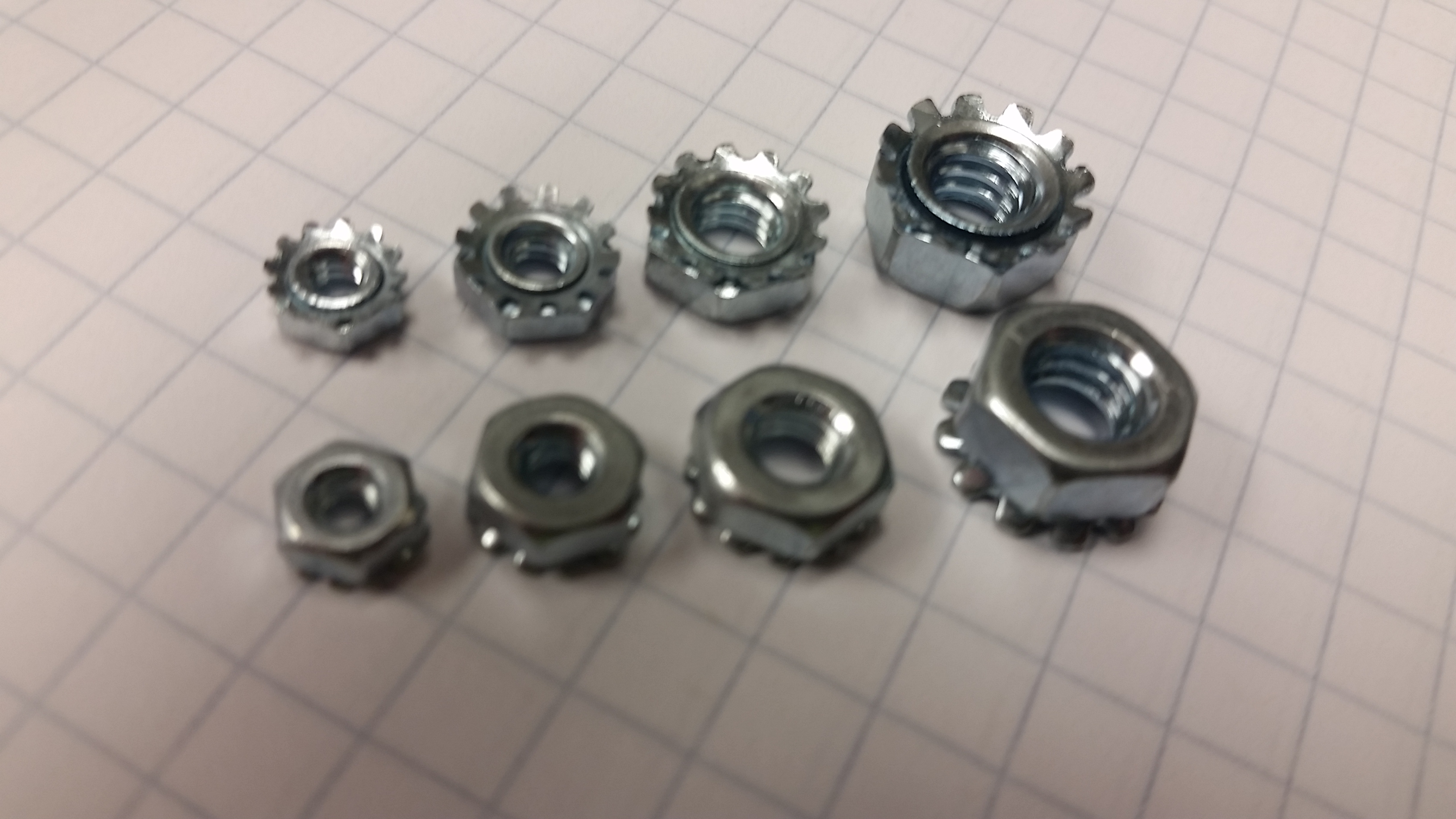

2	20170215_133419.jpg	1.25 MB
3	20170215_133449.jpg	1.41 MB
4	Copy Hex Nut with Tooth Lock Washer.xlsx	14.5 KB
5	Hex Locknut with External-Tooth Lock Washer, 025-20 Thread, 044 Width, Steel, Black Zinc-Plate.STEP	536 KB
6	Hex Locknut with External-Tooth Lock Washer, 025-20 Thread, 044 Width, Steel, Zinc-Plate.STEP	536 KB
7	Hex Locknut with External-Tooth Lock Washer, 025-28 Thread, 044 Width, Steel, Zinc-Plate.STEP	579 KB
8	Hex Locknut with External-Tooth Lock Washer, 031-18 Thread, 050 Width, Steel, Zinc-Plate.STEP	709 KB
9	Hex Locknut with External-Tooth Lock Washer, 031-24 Thread, 050 Width, Steel, Zinc-Plate.STEP	786 KB
10	Hex Locknut with External-Tooth Lock Washer, 038-16 Thread, 056 Width, Steel, Zinc-Plate.STEP	828 KB
11	Hex Locknut with External-Tooth Lock Washer, 038-24 Thread, 056 Width, Steel, Zinc-Plate.STEP	925 KB
12	Hex Locknut with External-Tooth Lock Washer, 050-13 Thread, 075 Width, Steel, Zinc-Plate.STEP	941 KB
13	Hex Locknut with External-Tooth Lock Washer, 10-24 Thread, 038 Width, Steel, Black Zinc-Plate.STEP	505 KB
14	Hex Locknut with External-Tooth Lock Washer, 10-24 Thread, 038 Width, Steel, Zinc-Plate.STEP	486 KB
15	Hex Locknut with External-Tooth Lock Washer, 10-32 Thread, 038 Width, Steel, Black Zinc-Plate.STEP	548 KB
16	Hex Locknut with External-Tooth Lock Washer, 10-32 Thread, 038 Width, Steel, Zinc-Plate.STEP	537 KB
17	Hex Locknut with External-Tooth Lock Washer, 12-24 Thread, 044 Width, Steel, Zinc-Plate.STEP	525 KB
18	Hex Locknut with External-Tooth Lock Washer, 4-40 Thread, 025 Width, Steel, Black Zinc-Plate.STEP	495 KB
19	Hex Locknut with External-Tooth Lock Washer, 4-40 Thread, 025 Width, Steel, Zinc-Plate.STEP	473 KB
20	Hex Locknut with External-Tooth Lock Washer, 5-40 Thread, 031 Width, Steel, Zinc-Plate.STEP	507 KB
21	Hex Locknut with External-Tooth Lock Washer, 6-32 Thread, 025 Width, Steel, Zinc-Plate.STEP	504 KB
22	Hex Locknut with External-Tooth Lock Washer, 6-32 Thread, 031 Width, Steel, Black Zinc-Plate.STEP	515 KB
23	Hex Locknut with External-Tooth Lock Washer, 6-32 Thread, 031 Width, Steel, Zinc-Plate.STEP	515 KB
24	Hex Locknut with External-Tooth Lock Washer, 8-32 Thread, 031 Width, Steel, Zinc-Plate.STEP	536 KB
25	Hex Locknut with External-Tooth Lock Washer, 8-32 Thread, 034 Width, Steel, Black Zinc-Plate.STEP	547 KB
26	Hex Locknut with External-Tooth Lock Washer, 8-32 Thread, 034 Width, Steel, Zinc-Plate.STEP	536 KB
27	MP0001041953.SLDPRT	4.8 MB
